Fixed lens 1-Chip DLP™ Projector with True 4K resolution
PT-FRQ50
5,200 lm PT-FRQ50 1-Chip DLP™ 4K Projector Delivers Smooth, Detailed Images for an Insightful Visual Experience
Key features
1-Chip DLP™ laser projector, 5,200lm brightness |
4K (3840 x 2160) output resolution, ideal for museum exhibitions, education, and corporate offices |
2.0x zoom lens and wide V/H Lens Shift (V: +71 %, -48 %, H: +34 %, -27 %) |
Preactivated upgrade kit for Geometry Manager Pro |
Supports 240Hz/1080p high frame rate with minimal input-to-output latency |
Smooth and Detailed 4K Image Quality
Quad Pixel Drive creates sharp, detailed 4K images with Rich Color Enhancer achieving vivid, accurate color. High-speed processing supports 240 Hz/1080p frame rates with latency of 8 ms or less for smooth, grid-less images.
Flexible, Simple to Use, and Easy to Integrate

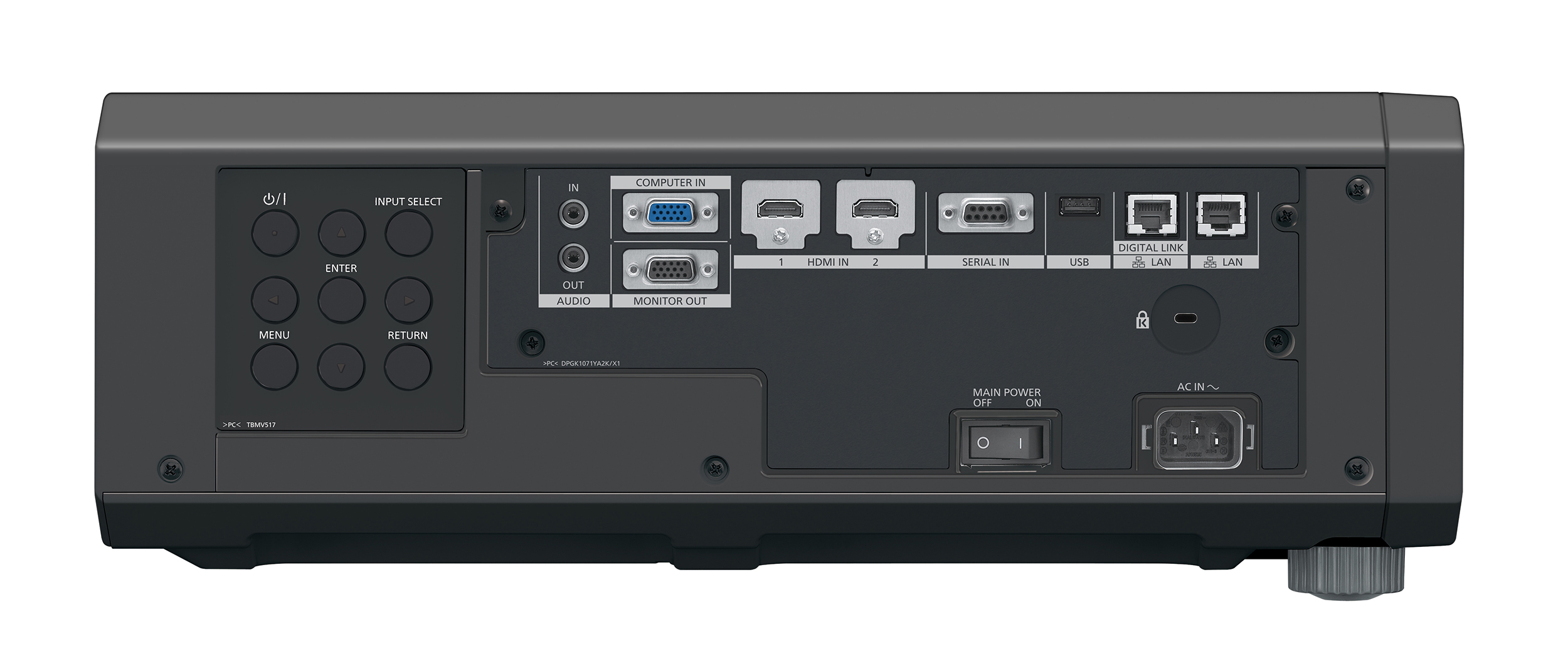

V/H Lens-Shift and 2.0x zoom enhance installation flexibility while two CEC-compatible HDMI® inputs and DIGITAL LINK integrate into 4K infrastructure. Preactivated upgrade kits for Geo Pro and Remote Preview Lite secure an effortless 4K experience.
Highly Reliable Low-Maintenance Projection
Filterless heat-pipe-based cooling and hermetically sealed optical block support 20,000-hour maintenance-free projection. Optional Early Warning functions streamline management and enhance reliability in museums, classrooms, and offices.
Product gallery
Specifications table
Projector type | 1-Chip DLP™ projector |
---|---|
DLP™ Chip | Panel Size | 16.5 mm (0.65 in) diagonal (16:9 aspect ratio) |
DLP™ Chip | Display Method | DLP™ chip x 1, DLP™ projection system |
DLP™ chip | Number of Pixels*1 | 1920 x 1080 pixels (If a signal other than 120 Hz/240 Hz is input, it cannot be displayed at this resolution.) |
Light Source | Laser diodes |
Light Output*2 *3 | 5,200 lm |
Time until light output declines to 50 %*4 | 20,000 hours (NORMAL/QUIET)/24,000 hours (ECO) |
Resolution | 4K (3840 x 2160 pixels) (With Quad Pixel Drive) |
