The World’s Smallest, Lightest, and Quietest 20,000 lm Projector

PT-MZ20KL

Key features

World’s Smallest, Lightest, and Quietest 20,000 lm LCD Projector

Long-Life Energy-Saving Design Minimizes Problems

Delivering up to 20,000 lm on AC 100–240 V, a World First

Introducing the smallest, lightest, and quietest LCD laser projector in its class with up to 20,000 lm* , compact 23 kg*2 (50.7 lbs) body, and quiet 42 dB*3 operation.

PROJECTOR TYPE	PT-MZ20KL SERIES
MODELS	PT-MZ20KL	PT-MZ17KL	PT-MZ14KL	PT-MZ11KL
RESOLUTION	WUXGA (1920 x 1200 pixels, 16:10)	WUXGA (1920 x 1200 pixels, 16:10)	WUXGA (1920 x 1200 pixels, 16:10)	WUXGA (1920 x 1200 pixels, 16:10)
BRIGHTNESS	20,000 lm¹	16,500 lm¹	14,000 lm¹	11,000 lm¹
Technology	LCD	LCD	LCD	LCD
Weight	Approx. 23.0 kg	Approx. 22.5 kg	Approx. 22.5 kg	Approx. 22.5 kg

^{1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped}

Note: Projector ships without a lens.

World’s Smallest, Lightest, and Quietest 20,000 lm* LCD Projector

Introducing the smallest, lightest, and quietest LCD laser projector in its class with up to 20,000 lm* , compact 23 kg^*2 (50.7 lbs) body, and quiet 42 dB^*3 operation. Optimized optical engine delivers a 25 % increase in brightness over the 16,000 lm^*4 PT-MZ16KL from the same body size, ensuring clear visibility in well-lit spaces.
PT-MZ20KL Series achieves the world’s quietest¹ operation at 42 dB. Not only does it keep participants focused, it also contributes to an improved sound environment for applications such as hybrid conferences. When a quieter environment is required, noise level can be further reduced to
36 dB by setting the projector to QUIET Mode. This helps create an environment where all viewers can concentrate on the presentation.

^{* Light output of PT-MZ20KL. As of November 2022, based on publicly available dimensions, weight, and operation noise values for LCD laser projectors with 20,000 lm brightness and above. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.}
^{*2 For PT-MZ20KL. PT-MZ17KL/MZ14KL/MZ11KL: 22.5 kg (49.6 lbs).}
^{*3 PT-MZ20KL in NORMAL Mode. Noise levels of other models in NORMAL Mode are 38 dB for PT-MZ17KL and 35 dB for PT-MZ14KL/MZ11KL.}
^{*4 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.}

Lightweight, Compact, and Capable of High-Brightness Projection

Introducing the world’s smallest and lightest LCD projector with 20,000 lm¹. Optimized optical efficiency has resulted in a 25 % increase in brightness from the same body size as the 16,000 lm PT-MZ16KL. The compact and sophisticated design harmonizes with open halls and hybrid learning spaces. Images from PT-MZ20KL Series are easily visible even in brightly lit areas, making it suitable for a wide range of applications, from large-screen projection at lectures and seminars to powerful exhibition presentations at museums.

1 Light output of PT-MZ20KL. As of March 2023, based on publicly available dimensions, weight, and operation noise values for LCD laser projectors with 20,000 lm brightness and above.

Pure White Generator Delivers High Brightness and Rich Color

Pure White Generator, developed by Panasonic Connect, contributes to rich color reproduction at high brightness of up to 20,000 lm¹. Efficient light collection uses a multi-reflection system to minimize loss of light-source energy noticeable with conventional systems. It achieves an optimal color balance without sacrificing brightness for realistic and accurate color expression.

1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.

Dynamic Contrast NX Realizes a New Dimension of Light and Dark Control

Dynamic Contrast NX, a further evolution of Dynamic Contrast, uses a newly developed video-scene analysis circuit to recognize differences in brightness and darkness more precisely than before.

Environmentally Friendly Energy-Saving Design, from Transport to Maintenance

Light and compact body improves loading efficiency and reduces CO₂ emissions associated with transport. In addition, MZ20KL boasts the world’s lowest power consumption of any projector in its class to reduce resources required for daily operation. Laser light source and filter don’t need to be replaced for 20,000 hours, minimizing use of consumable parts and other waste. From transportation to operation and maintenance, the environmentally friendly design reduces labor and costs while supporting CSR, SDGs, and other green initiatives.

Multi-Laser Drive Engine Anticipates Unforeseen Circumstances

Multi-Laser Drive Engine ensures stable projection even if light-source problems occur. The projector is equipped with multiple modules consisting of many laser diodes, and in the unlikely event one of the elements malfunctions, Panasonic Connect’s unique Failover Circuitry is activated so that projection can continue with virtually no reduction in brightness. This allows the projector to be used with peace of mind in situations where a drop in brightness could affect important presentations, such as large-scale lectures and seminars.

Long-Term Stability with Unique Liquid-Cooling System and Dustproof Structure

To achieve high brightness and stable operation, we adopted a liquid-cooling system originally developed for our DLP™ projection systems. This efficient design circulates cooling liquid to the light-source modules directly, preventing temperature increases associated with high-brightness projection. Combined with a highly reliable original dustproof structure, the system enables stable performance even in hot, dusty environments.

Backup Input Function for Enhanced Reliability

Backup Input function enables seamless projection even if the input signal is disrupted. With HDMI 1 set as the primary input and HDMI 2 set as the secondary input, the projector switches to HDMI 2 in as little as 0.3 seconds if the signal to HDMI 1 is disrupted. This improves reliability and ensures stable operation in environments where video presentation must not be interrupted.

Information Monitor for Changing Settings and Checking Status

Information Monitor is located on the main unit’s control panel and displays information such as temperature, voltage, operating hours, and input signals in real time. If a projector error occurs, the error number and associated details are immediately reported. The status of the main unit can be easily checked, and quick recovery from trouble is made possible.

Up to 20,000 lm on AC 100–240 V Power

This series is the first in the industry² to achieve up to 20,000 lm¹ on AC 100–240 V input voltage. Conventional projectors require an AC 200–240 V power supply to project at 20,000 lm¹, but this series can project images using an ordinary power outlet. This eliminates need for high-voltage power supply installation, and greatly expands the range of situations in which a 20,000 lm-class projector can be deployed.

1 Light output of PT-MZ20KL. Measurement, measuring conditions, and method of notation all comply with
ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.

2 As of March 2023, based on LCD laser projectors with 20,000 lm brightness and above according to
internal research.

Data Cloning Function Now Compatible with USB Memory

Data cloning function allows the user to copy settings and adjustment values from a Main projector to Sub projectors via LAN¹ or USB memory device. This function reduces the time and effort required when setting up multiple projectors.

Smart Projector Control App for Smooth Installation

Smart Projector Control app¹ allows you to control the projector from a smartphone. By scanning the QR code² displayed on the OSD menu screen or Information Monitor and connecting to wireless LAN, switching input signals and other functions can be performed from a mobile device. In addition to being able to control up to 64 devices simultaneously, it also supports lens adjustment, test-pattern switching, and focus adjustment using your device’s camera³ from a distance of 30 m⁴. For more information, please click here.

1 Check device compatibility at the App Store or the Google Play store.

2 Requires optional AJ-WM50 Series Wireless Module (sold separately). Product availability may vary by country or region.

3 Some devices do not support projector autofocus function.

4 When projecting a 300-inch image. Maximum distance is 3 m (10 ft) for a 100-inch image.

Geometric Adjustment Corrects Trapezoidal Distortion and Curved Screens

With built-in Geometric Adjustment, various distortions on the screen can be corrected via remote control. In addition to trapezoidal distortion resulting from angled projection, Curved Screen Correction fixes distortion caused by projection onto curved surfaces. Corner Correction allows the user to specify four screen corners, such as the upper right and lower right, for correction. Screen proportions can be maintained and corrections can be saved as data.

Free Grid Enables Pinpoint Correction of Local Distortion

In addition to built-in Geometric Adjustment function, Free Grid allows pinpoint correction of local distortion within the screen. Grids between 2 x 2 and 17 x 17 lines can be selected to allow point-by-point correction, or batch correction by specifying vertical and horizontal lines. Correction data is maintained even after changing the number of grids or points, allowing smooth transition from basic to detailed correction. This convenient function allows adjustment of special screens, such as irregular or uneven wall surfaces, with the remote control.

Preactivated Upgrade Kits for Geometry Manager Pro Software

For advanced screen adjustment, PT-MZ20KL Series features Geometry Manager Pro software¹ which expands built-in functions and enables adjustment from a PC. In addition to the standard functions included in the software, PT-MZ20KL Series has built-in upgrade kits that allow access to all functions without license activation. PT-MZ20KL Series offers unparalleled smoothness to reduce labor-intensive adjustment with camera-based² geometric distortion correction, edge-blending, color-matching, stacking, and automatic adjustment of brightness and black levels.

1 Visit PASS to register your projector and download free Geometry Manager Pro software for Windows^® (upgrade kits included). Visit the Panasonic Geometry Manager Functions webpage for more information.

2 Compatible cameras comprise Nikon D5200/D5300/D5500/D5600/D7500. Use of Auto Screen Adjustment function with these cameras requires installation of Auto Screen Adjustment Plug-in (a free camera driver available from PASS). Use of Auto Screen Adjustment function with D7500 requires Geometry Manager Pro Ver. 6.1.10 or later and Auto Screen Adjustment Plug-in Ver. 5.1.10 or later.

Black Level Correction to Match Screen Shape

With conventional black level correction, only the width and angle of the black border are specified for correction, making edge-blending on curved screens difficult. To solve this problem, PT-MZ20KL Series is equipped with a function that allows the shape of black borders to be adjusted to match the screen shape. Using up to 17 points, flexible black level correction is possible even on curved screens, enhancing the sense of cohesion in multi-screen applications.

Remote Preview LITE for Remote Confirmation of Images

With Remote Preview LITE¹, you can check input images in advance even when it’s not possible to project content, such as outdoors during the daytime or during performance rehearsals. When your PC and the projector are connected to the network, you can use a web browser or Multi Monitoring & Control Software to display thumbnail images of the input video. Check content even when the shutter is in use or the projector is in Standby² to quickly identify any problems between the source device and the projector for faster recovery.

1 Requires Multi-Monitoring & Control Software Version 3.3 or later available free here. For more information, click here.
2 Projector must be set to Pre-Show Mode.

Other Features

Panasonic Connect’s unique image quality correction circuitry reproduces details more clearly and sharply. It analyzes video signal frequencies in each scene and adjusts for optimal sharpness based on information extracted from the signal. Compared to conventional image processing technology, this system reproduces images with an even more natural and three-dimensional feel.

Uncompressed 4K/60p input signals¹ are supported via HDMI^® or DIGITAL LINK. Since no external devices such as converters are required, 4K signals can be processed smoothly. This eliminates the need for
re-encoding when the projector is used with other 4K-compatible equipment, making projection with 4K signals simple and efficient.

1 Input signals are converted to the projector’s display resolution upon playback. 4K/60p signals are supported via HDMI and DIGITAL LINK terminals. 4K/60p and 4K/50p signals input via DIGITAL LINK are supported in YP_BP_R 4:2:0 format only.

A variety of optional lenses (eight models² in total) are available to support a range of screen sizes between 80 and 600 inches, allowing you to select the optimal lens for your projection needs. These lenses are equipped with a temperature sensor and automatically correct focus in conjunction with the projector’s AFO² function. This technology maintains a sharp image regardless of the brightness of the content, eliminating need for manual focus adjustment. Of course, powered lens-shift and zoom adjustment is also supported via remote control or Smart Projector Control app³.

1 Specifications vary depending on the lens. Please refer to the Operating Manual for details.
2 PT-MZ17KL/MZ14KL/MZ11KL are also compatible with previously released ET-EMS600/EMT700/EMT800 lenses.
3 Check device compatibility at the App Store or the Google Play store.

ET-EMU100 Ultra-Short-Throw Zoom Lens has a throw ratio of 0.330–0.353:1 and a screen size range of 100–400 inches, and enables large-screen projection even from tight installation spaces. With no gap (offset area) between the ceiling and the screen, ET-EMU100 eliminates need for adjustment and expands the range of visual expression by supporting the zoom function despite its ultra-short focus.

Supports 21:9 input signals
Supports Art-Net DMX, PJLink™, Crestron Connected™ V2, Crestron XiO Cloud™, Extron XTP^® and IPv6¹
Compatible with Multiple PJ Firmware Batch Update Tool
Direct Power Off function
Scheduling function
Presentation support system
Free 360-degree installation
Quick Startup and Quick Off
Multi-unit Brightness and Color Control function
Multi-Screen Support System
DICOM Simulation Mode
Waveform monitoring function

1 Wired LAN only.

Product gallery

Download

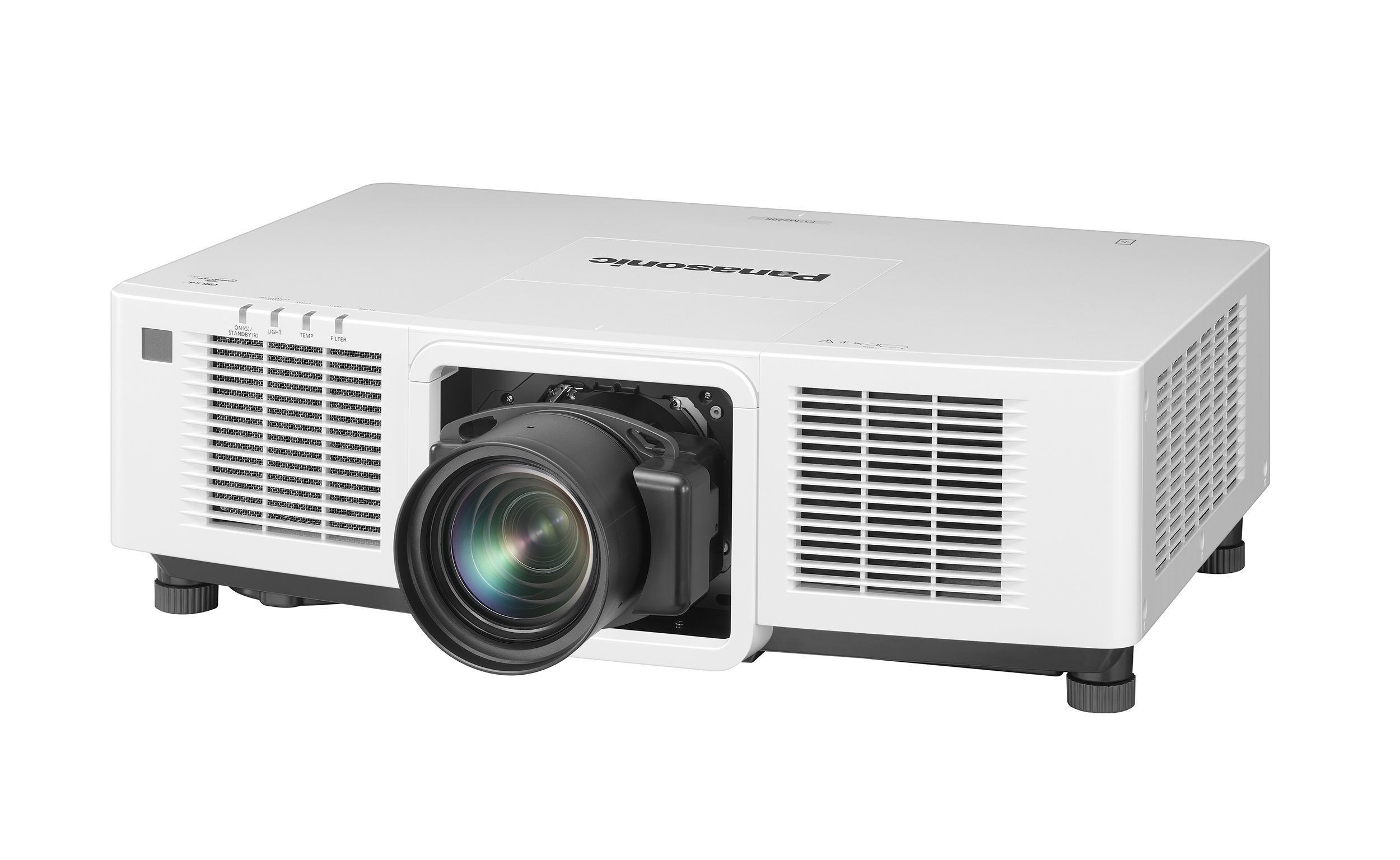

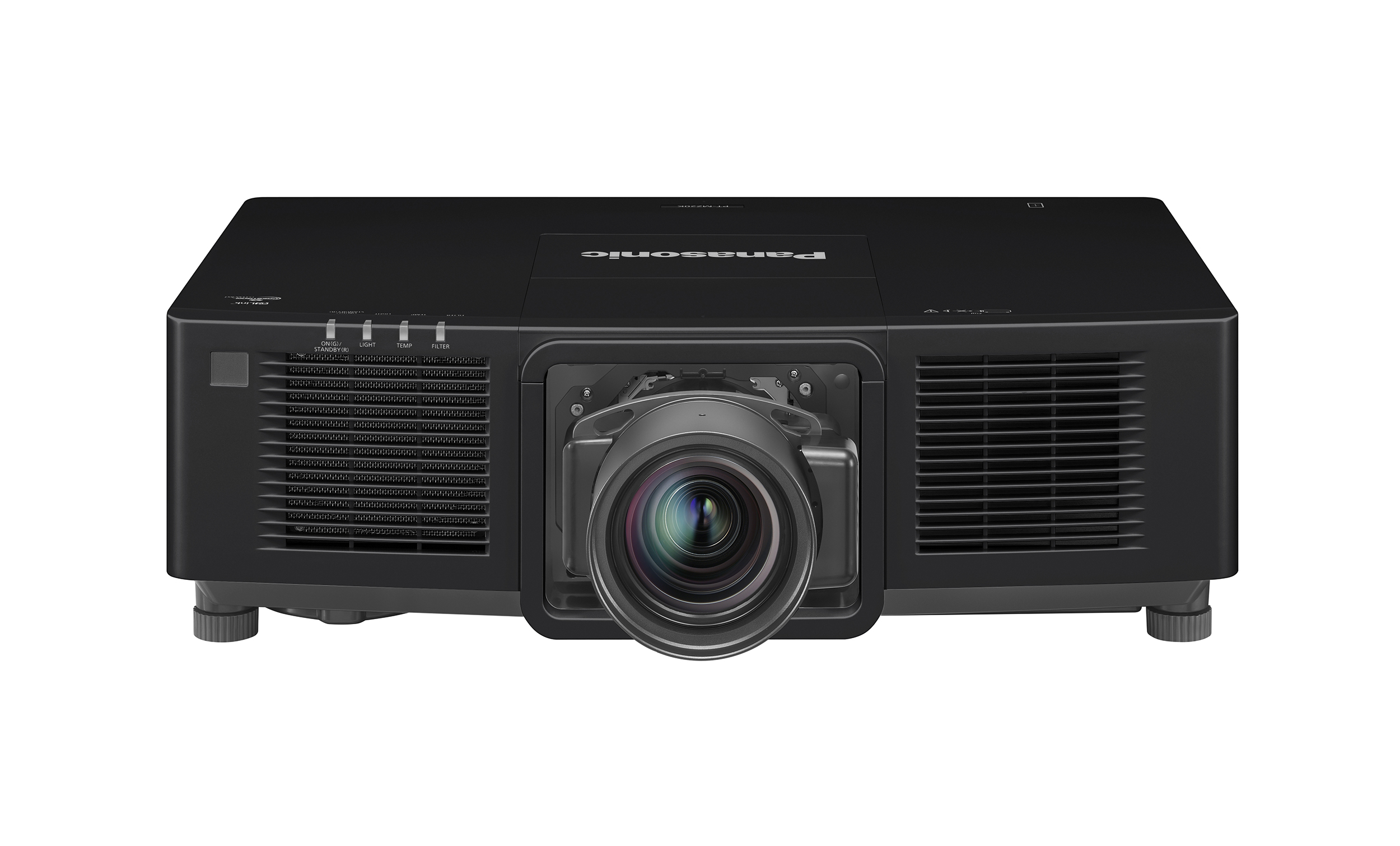

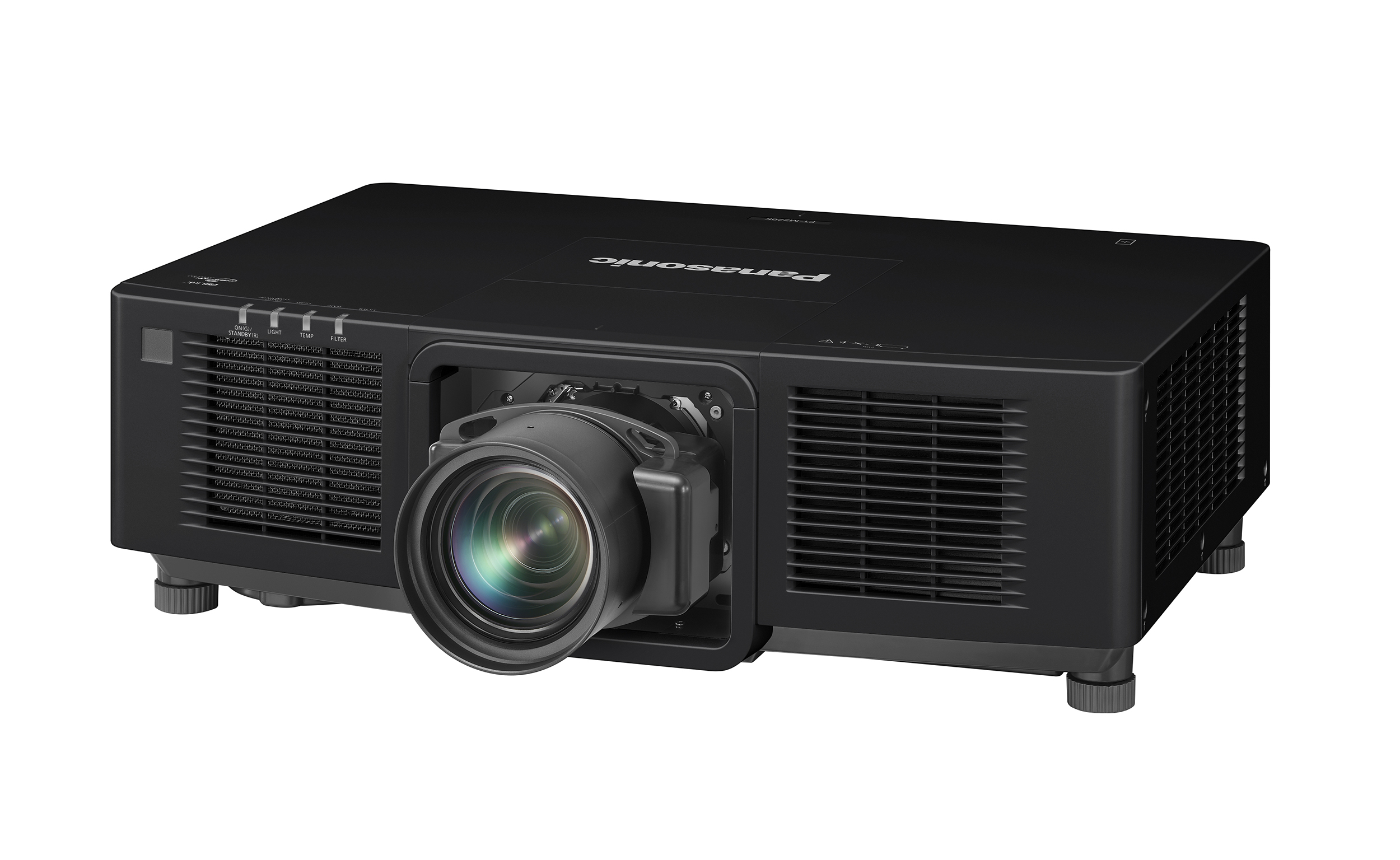

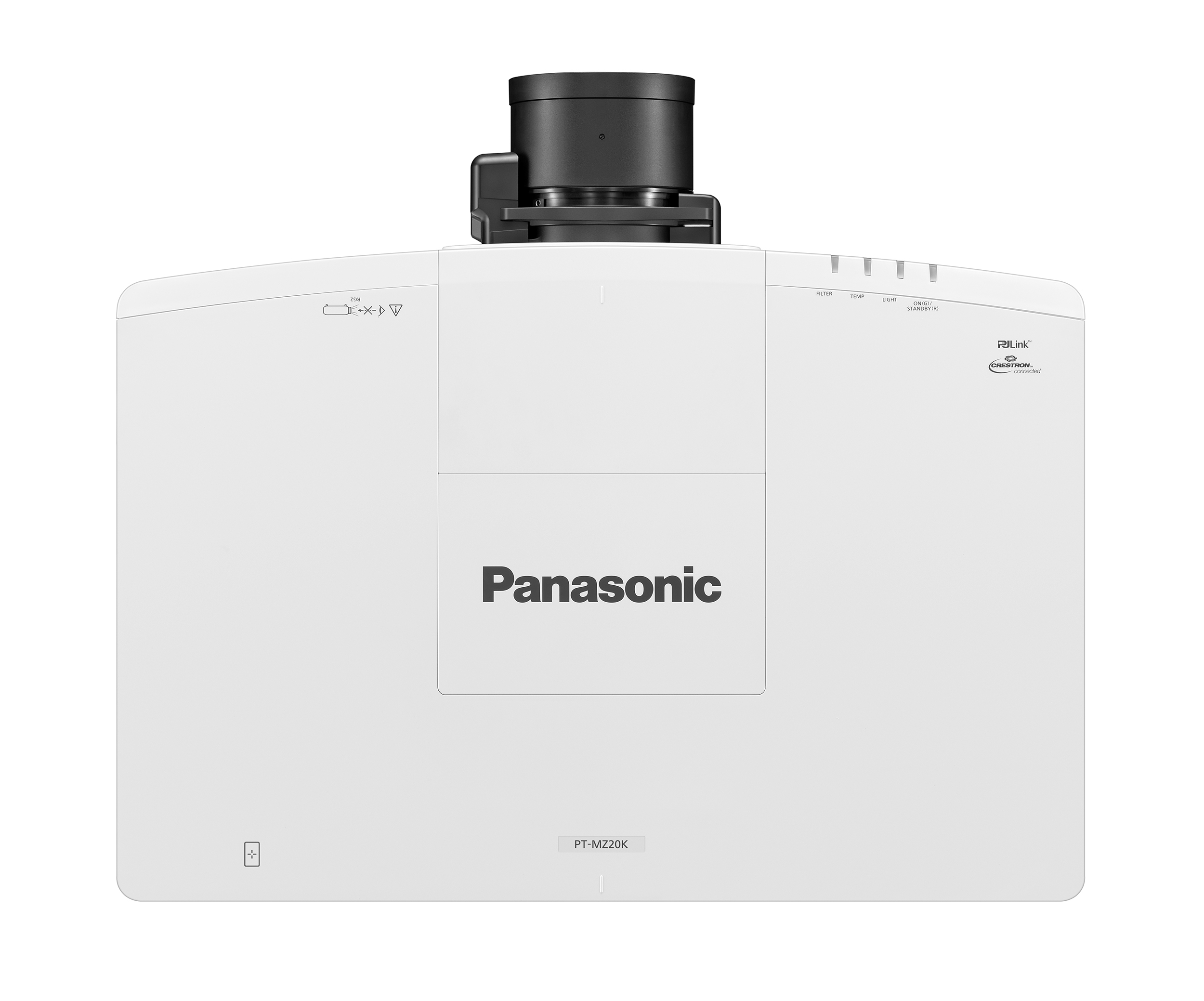

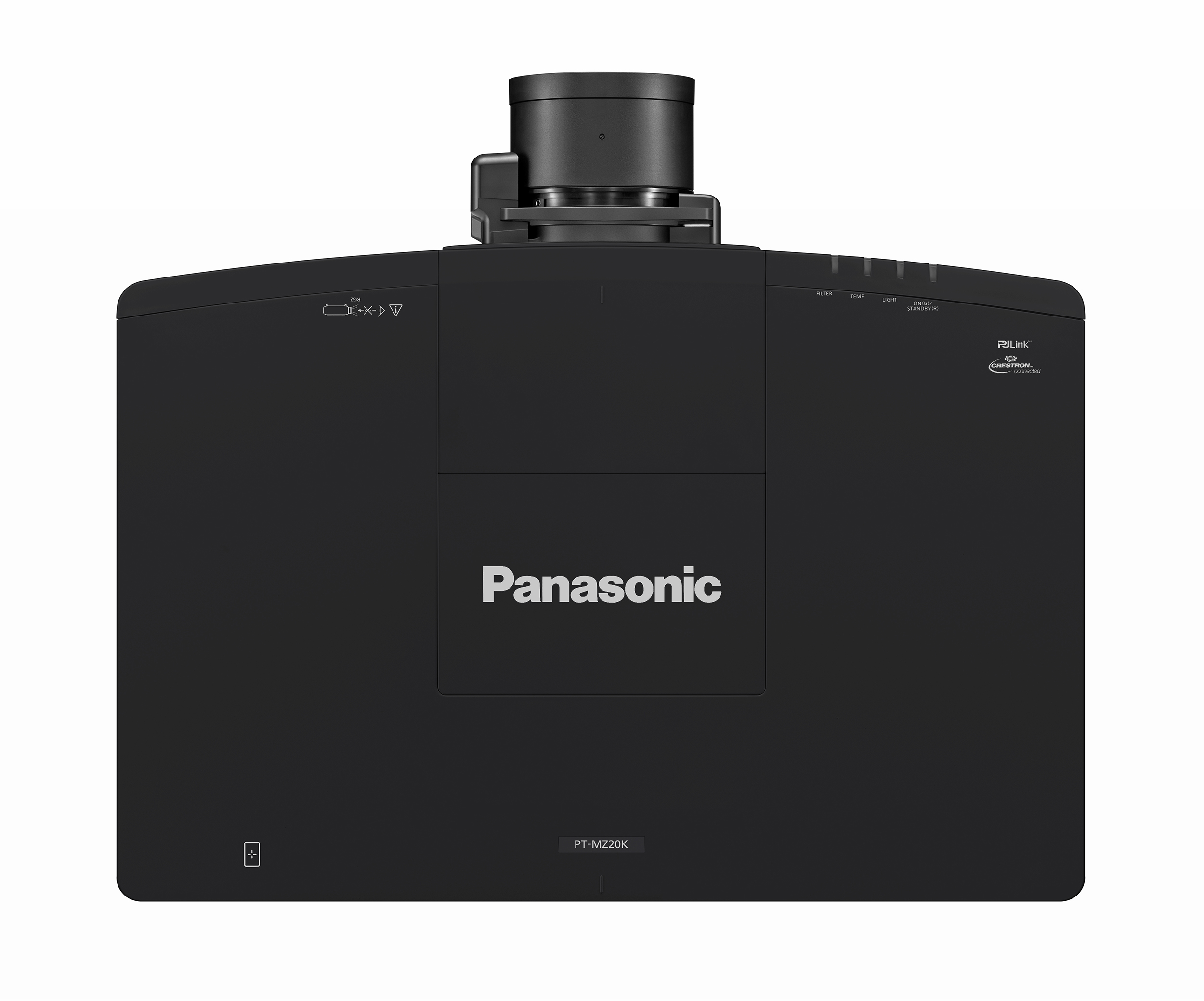

Product Image: PT-MZ20K/MZ17K/MZ14K/MZ11K

Download

Specifications table

Projector type	LCD projector
LCD Panel \| Panel Size	25.4 mm (1.0 in) diagonal (16:10 aspect ratio)
LCD Panel \| Display System	Transparent LCD panel (x 3, R/G/B)
LCD Panel \| Drive Method	Active matrix method
LCD Panel \| Pixels	2,304,000 (1920 x 1200 pixels)
Light Source	Laser diode
Light Output1 2	20,000 lm
Time until light output declines to 50 %*3	20,000 hours (NORMAL/QUIET)

View full specifications

Lenses for LCD Projectors > 10.000 lumen

ET-EMW200

0.480-0.550:1 Throw Ratio Zoom lens for PT-MZ16KL/MZ13KL/MZ10KL

View product

Lenses for LCD Projectors > 10.000 lumen

ET-EMU100

Throw Ratio 0.330 – 0.353:1 (Aspect 16:10)0.329 – 0.353:1 (Aspect 16:9)0.396 – 0.425:1 (Aspect 4:3)

View product

Key Features
Ultra-Short-Throw Versatility with Zero Offset
Flexibility Streamlines Installation Workflow
Durability for Peace of Mind

Lenses for LCD Projectors > 10.000 lumen

ET-EMW300

0.550-0.690:1 Throw Ratio Zoom lens for PT-MZ16KL/MZ13KL/MZ10KL

View product

Lenses for LCD Projectors > 10.000 lumen

ET-EMW400

0.690-0.950:1 Throw Ratio Zoom lens for PT-MZ16KL/MZ13KL/MZ10KL

View product

Showing 4 of 8

Filters

ET-RFM100

The Replacement Filter Unit (3LCD) is designed for compatibility with MZ Series projectors.

View product

Showing 1 of 1

Full specifications

Download specifications

Projector type	LCD projector
LCD Panel \| Panel Size	25.4 mm (1.0 in) diagonal (16:10 aspect ratio)
LCD Panel \| Display System	Transparent LCD panel (x 3, R/G/B)
LCD Panel \| Drive Method	Active matrix method
LCD Panel \| Pixels	2,304,000 (1920 x 1200 pixels)
Light Source	Laser diode
Light Output1 2	20,000 lm
Time until light output declines to 50 %*3	20,000 hours (NORMAL/QUIET)
Resolution	WUXGA (1920 x 1200 pixels)
Contrast Ratio*1	3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] set to [3].)
Screen Size (Diagonal)	2.03–15.24 m (80–600 in), 2.54–10.16 m(100–400 in) with ET-EMU100, 16:10 aspect ratio
Center-to-corner zone ratio*1	85 %
Lens	Optional (no lens included with this model)
Lens shift \| Vertical (from center of screen)	±60 % (+50 %, -20 % with ET-EMU100, ±40 % with ET-EMW200, ±50 % with ET-EMW300) (powered)
Lens shift \| Horizontal (from center of screen)	±20 % (±19 % with ET-EMW200) (powered)
Keystone Correction Range	Vertical: ±45 ° (±5 ° with ET-EMU100, ±14 ° with ET-EMW200/ET-EMW300, ±22 ° with ET-EMW400/ET-EMW500), Horizontal: ±40 ° (±0 ° with ET-EMU100, ±8 ° with ET-EMW200/ET-EMW300,±15 ° with ET-EMW400/ET-EMW500). When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °.

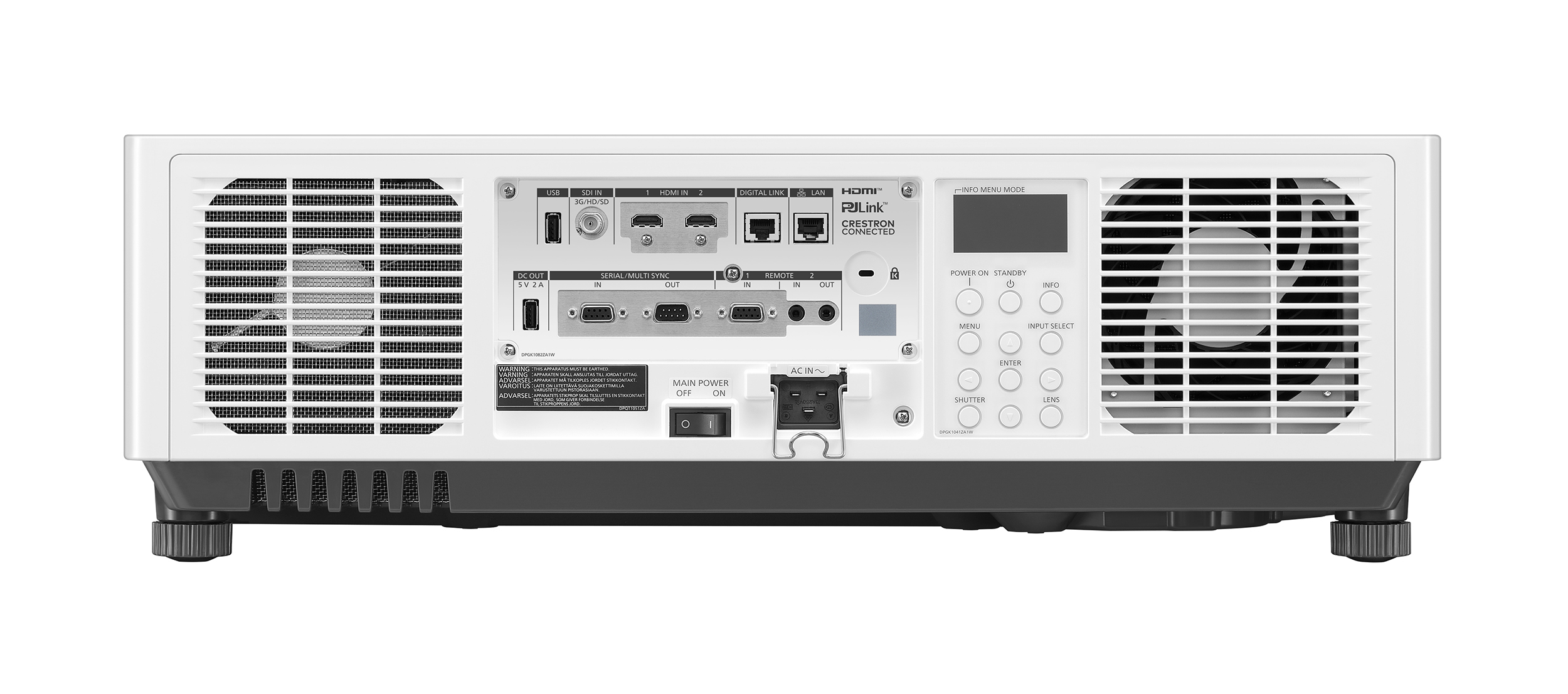

Terminals \| SDI In	BNC x 1: 3G/HD-SDI input
Terminals \| HDMI In	HDMI 19-pin x 2 (Compatible with HDCP 2.3, Deep Color, 4K/60p signal input5), CEC supported
Terminals \| Serial/Multi Projector Sync In	D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Terminals \| Serial/Multi Projector Sync Out	D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
Terminals \| REMOTE 1	D-sub 9-pin (female) × 1 for external control (parallel)
Terminals \| Remote 2 In	M3 x 1 for wired remote control
Terminals \| Remote 2 Out	M3 x 1 for link control (for wired remote control)
Terminals \| DIGITAL LINK	RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2],Art-Net, HDCP 2.3, Deep Color, 4K/60p signal input*5 )
Terminals \| LAN	RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net)
Terminals \| DC Out	USB connector (Type A) x 1 for power supply (Output: 5 V / 2 A)
Terminals \| USB	USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module, for USB memory
Power Supply	AC 100–240 V, 50/60 Hz
Power consumption*6 \| Maximum power consumption	1100 W (11.2–4.6 A) (1120 VA)
Power consumption*6 \| On-mode power consumption (Light power)[Normal]	1050 W (AC 100–120 V), 1000 W (AC 200–240 V)
Power consumption*6 \| On-mode power consumption (Light power)[Quiet]	630 W (AC 100–120 V), 610 W (AC 200–240 V)
Filter	Included (Estimated maintenance time: approx. 20,000 hours *7)
Operation noise*1	42 dB (NORMAL), 36 dB (QUIET)
Dimensions (W x H x D)	Approx. 650 x 185 x 440 mm (25 19/32˝ x 7 9/32˝ x 17 5/16˝ ) (excluding feet and protrusions), 650 x 211 x 440 mm (25 19/32˝ x 8 5/16˝ x 17 5/16˝ ) (excluding protrusions, feet at shortest position)
Weight*8	Approx. 23.0 kg (50.7 lbs)
Operating Environment	Operating temperature: 0–45 °C (32–113 °F)*9, operating humidity: 10–80 % (no condensation)
Applicable Software	Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro, Projector Network Setup Software, Smart Projector Control for iOS/Android™
Note	1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. 2 When [OPERATING MODE] is set to [NORMAL]. This is the value when the Zoom Lens (Model No.: ET-EMS650) is used. Thevalue varies depending on the lens. 3 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMAL Mode, [DYNAMIC CONTRAST] set to [3], under conditions with 30 °C (86 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 ofparticulate matter. Estimated time until light output decreases to 50 % will vary depending on environment. 4 ET-EMT800 is compatible with PT-MZ17KL/MZ14KL/MZ11KL only. It cannot be used with PT-MZ20KL. 5 4K signals are converted to the projector's resolution (1920 x 1200 pixels) uponprojection. 4K/60p and 4K/50p signals input via DIGITAL LINK are supported in YPBPR 4:2:0 format only. 6 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operatingtemperature at an altitude of 700 m (2,297 ft). 7 Under conditions of 0.15 mg/m3 of particulate matter. Estimated maintenance time varies depending on environment. Filter can be washed and reused up to two times. 8 Average value. May differ depending on the actual unit. *9 Note that the projectorcannot be used at altitudes 2,700 m (8,858 ft) or higher above sea level. In the following operating environments, light output may be reduced to protect the projector: when the projector is used at altitudes below 1,400 m (4,593 ft) and ambient temperature is 35 °C (95 °F) or higher; when theprojector is used at altitudes between 1,400 m (4,593 ft) and 2,700 m (8,858 ft) exclusive and ambient temperature is 30 °C (86 °F) or higher. The operating environment temperature should be between 0 °C (32 °F) and 40 °C (104 °F) when the optional AJ-WM50 Series Wireless Module is attached.
